Product Features

• Excellent accuracy, high stability
• Unique measuring tube, high-tech ceramic lining
• Sintered metal ceramic or platinum electrodes
• Standard tables of international metrology institutions
• Suitable for the most corrosion-resistant and abrasive media
• Withstands full vacuum
• Insensitive to temperature changes

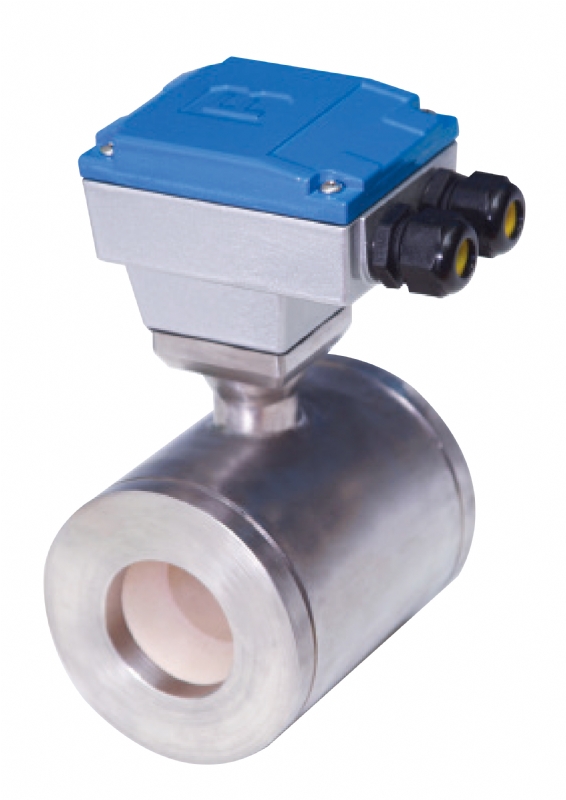

• Optional flange or clamp connection
• Optional BFC090 K/B converter
• Split terminal box material: aluminum (optional: stainless steel)

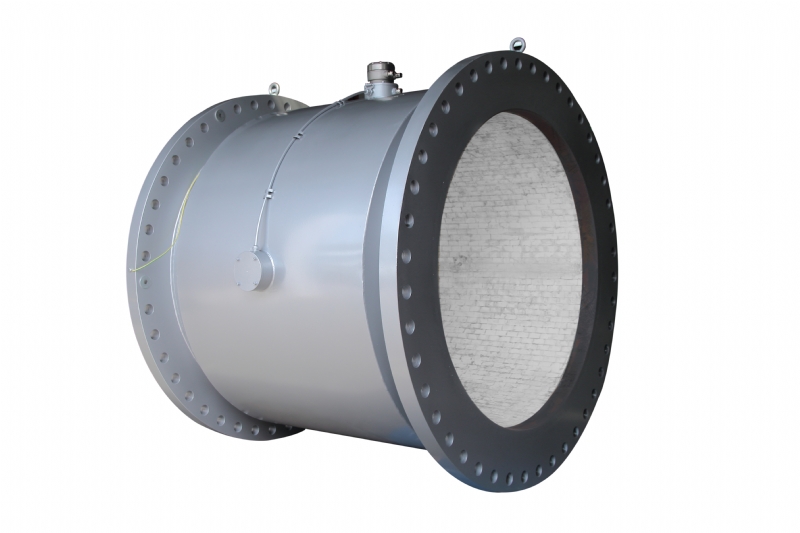

• Lined with high-purity zirconium oxide ceramic sheets above DN200 (temperature range ≤90°C)

Contact us for more information！

Caliber Range

DN10mm~200mm

Electrode Choose

Stainless Steel;  HC / HB;  Platinum ;  Tantalum ; Titanium

Electrode Type

Standard Type; Scraper Type

Lining Choose

PTFE; Rubber; Polyurethane; PFA

Accuracy Choose

± 0.5% RS;  ± 0.2% RS

Repeatability

± 0.1%

Flow Rate Range

0.3 m/s~ 12m / s

Signal Output

Pulse / frequency ;  4 ~ 20mA;

Communication

MODBUS 485; PROFIBUS -DP protocol; HART protocol
