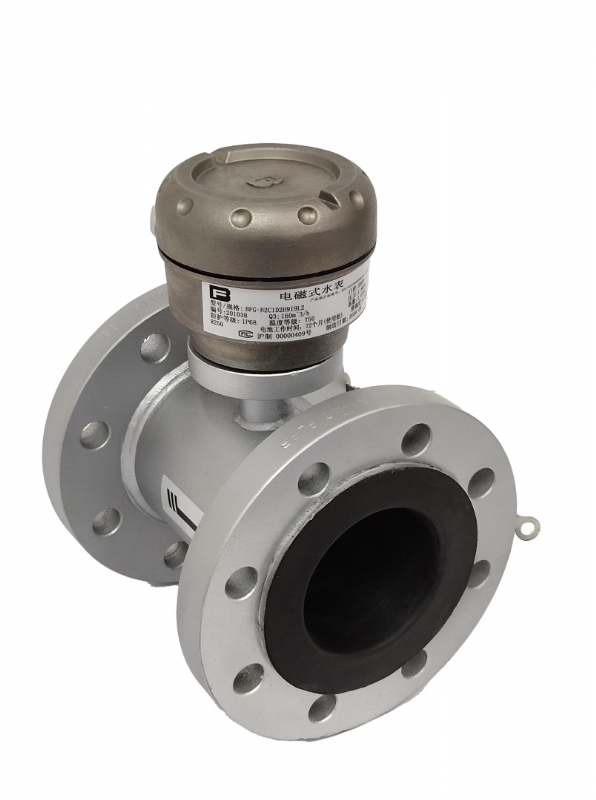

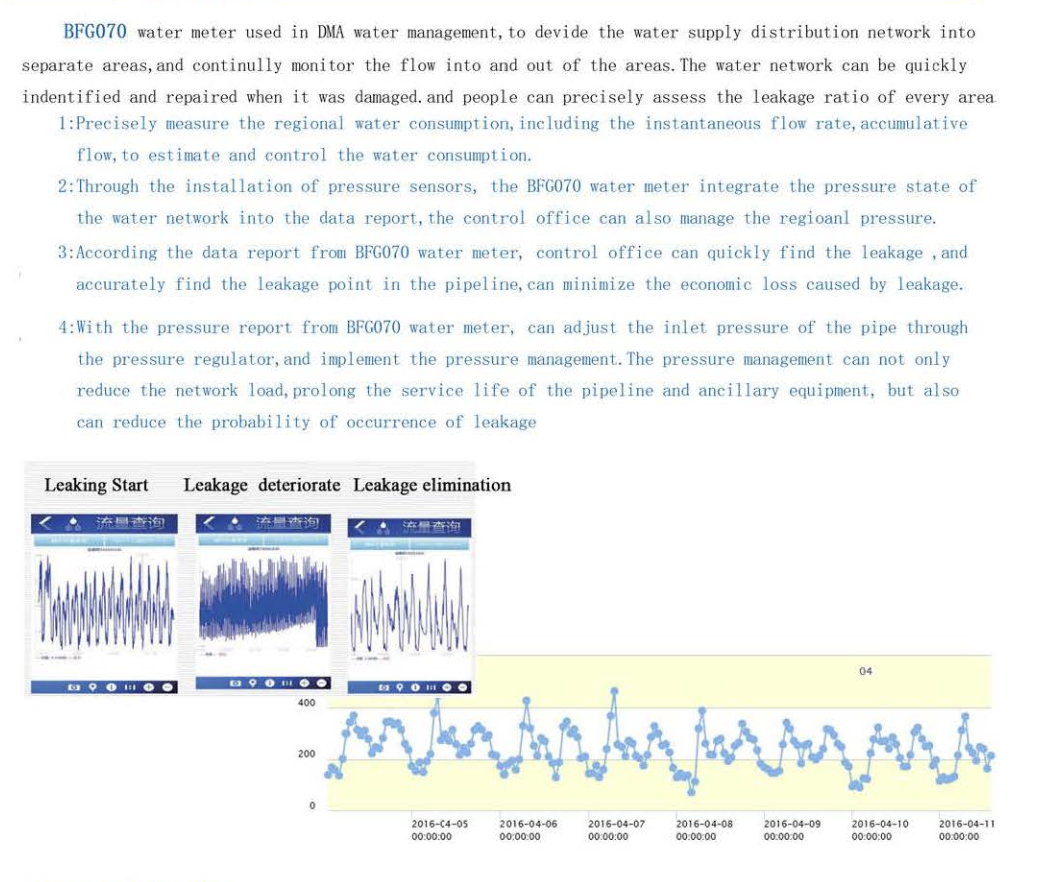

The BFG-070 is a battery-powered electromagnetic water meter, according to Faraday's Law of Induction, and strictly follows the national standards of ISO4064, GB/T778-2007, and JJG162-2007. This intelligent water meter is used in water abstraction wells, district metering areas (DMA), and custody transfer measurements of potable water.

Product Features

• Corrosion-resistant stainless-steel housing, applicable to a variety of environments.
• IP68 waterproof rating
• Compliant with potable water safety standards
• Intermittent working mode, battery life spans up to 4~6 years
• Multiple flange options for customized installation

Parameter Description

Diameter nominal: DN40~DN500, multiple size options for customized

Flow turndown: R=400, R=500, R=1000

Pressure: 0.6MPa ~ 1.6MPa, other customizable

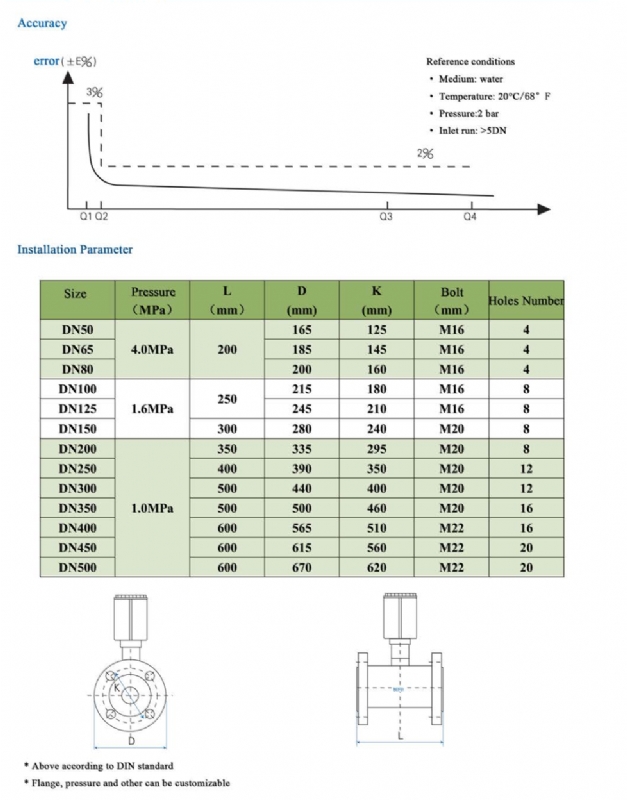

Accuracy: Grade 1 ; Grade 2

Measuring range: 0.005m/s ~ 10m/s

Power supply: Battery

Working temperature.: -40 ℃~60 ℃

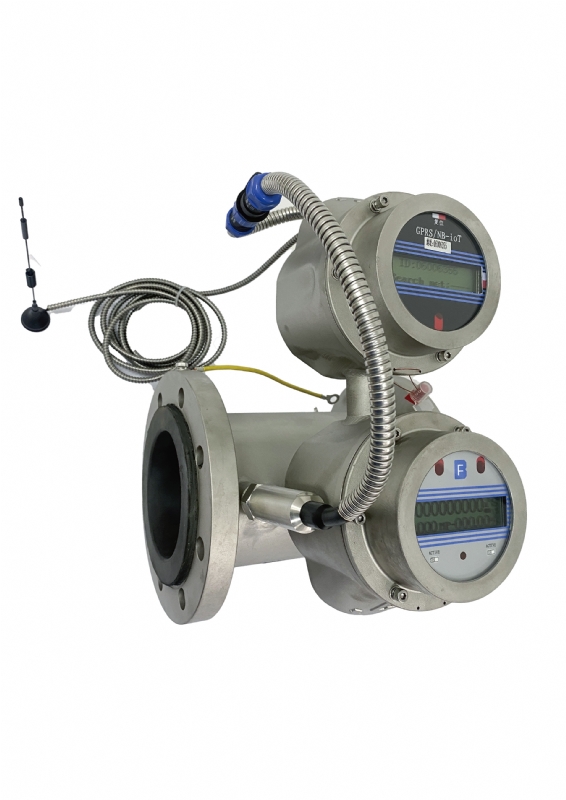

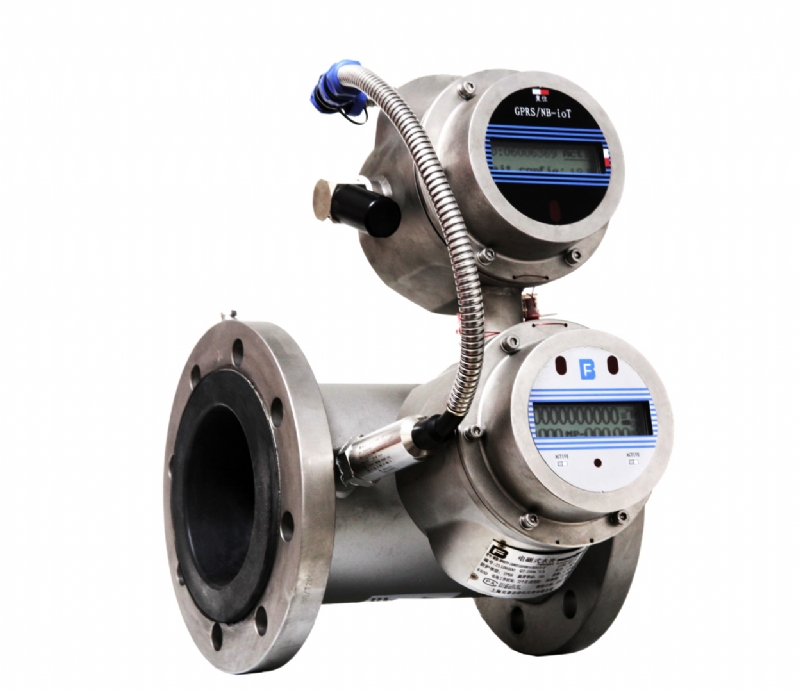

Installation type: Remote Type, Integrated type, Split Type

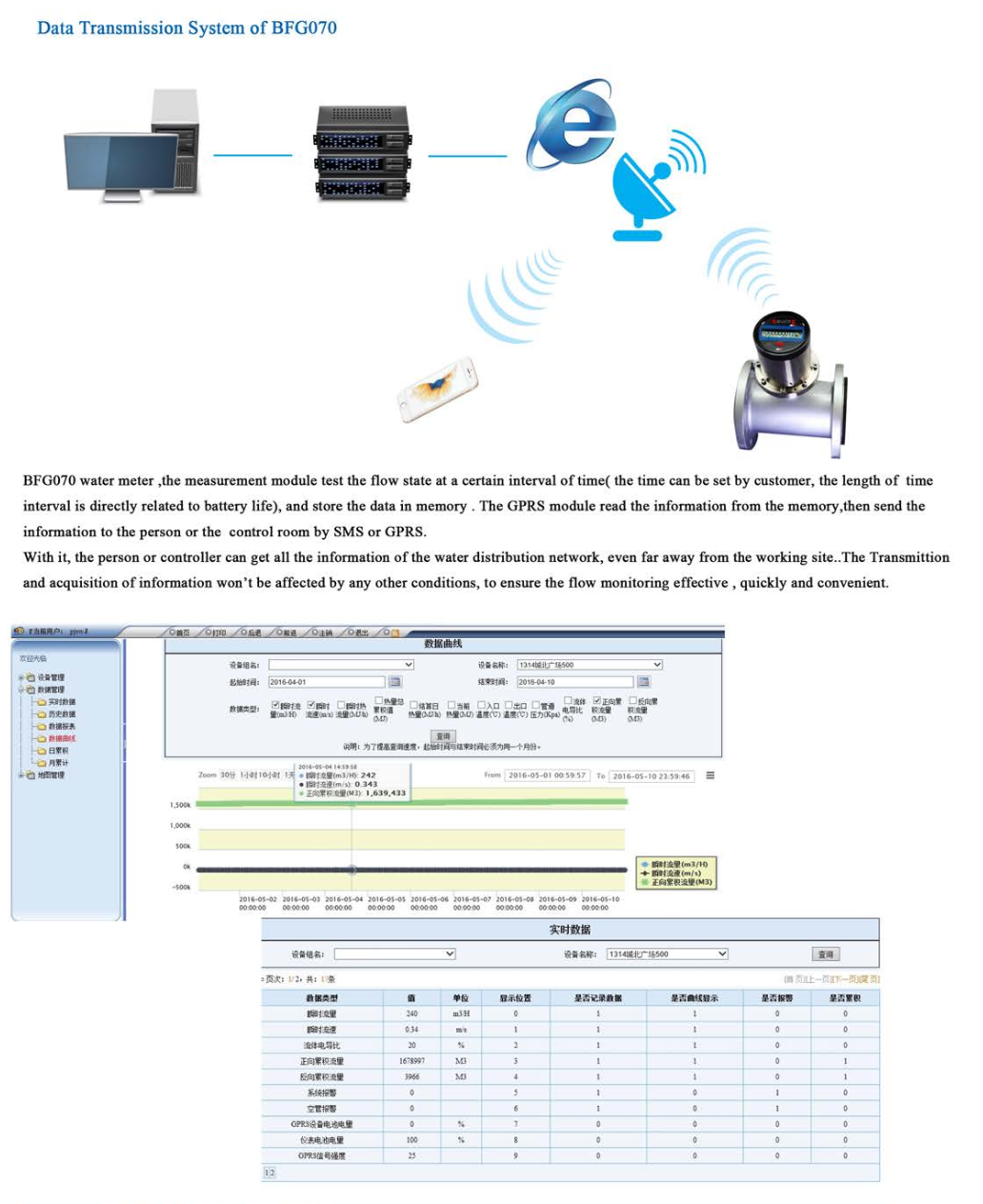

Signal output: MODBUS; GPRS; SMS;

Signal input: Pressure Input; Temperature Input

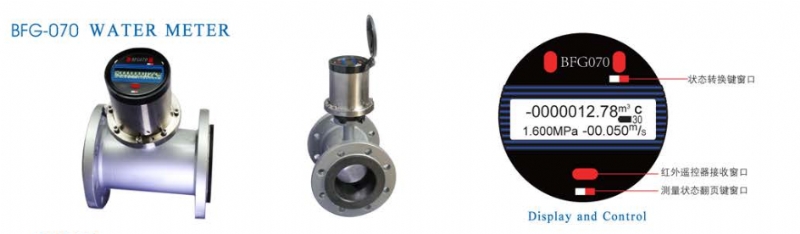

Operation: Infrared remote controller

Data record: Flowrate, Historical data, Display and printing pressure report, Map distribution, etc

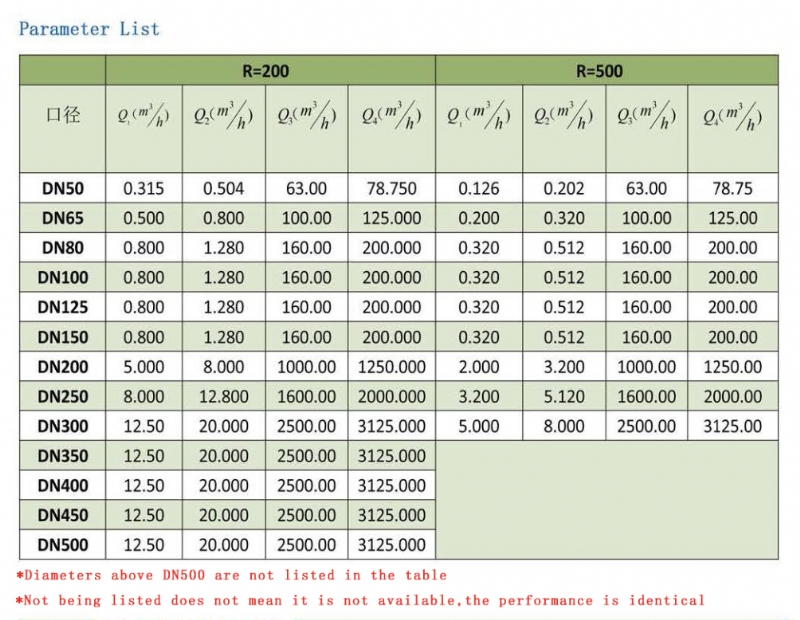

BFG-070 Water Meter	Parameter List
BFG070	BFG070
Accuracy	Integrated type
Remote type	Split Type
